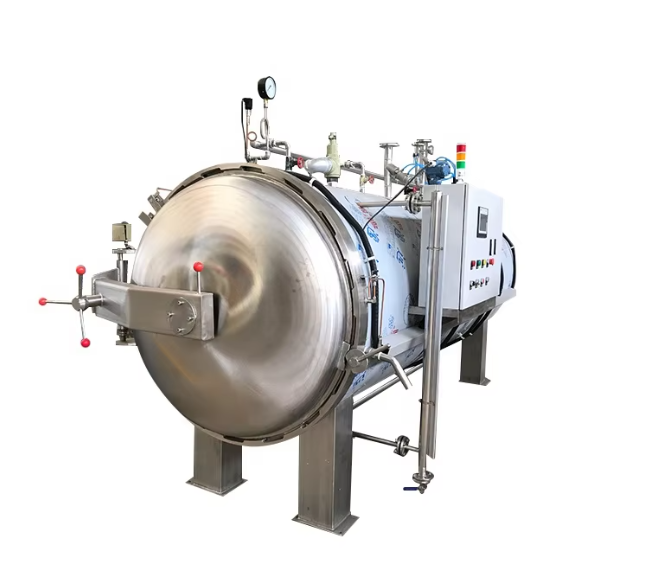

Automatic Horizontal Retort/Autoclave
ACL-H(270-3000)
Product Specifications:
Model | ABATA-ACL- H(270-3000) |
Type | Cylinder Horizontal |
Capacity ( Approx ) | 270 - 3000 Liters |
Working Temperature | Up to 135⁰ C |
Design Pressure | 3,5 Bar |
Operational Sterilizer System | Automatic Sterilitation With Internal Cooling System |
Heating Source | Steam Heating Boiler |
Working Medium | Steam Heating |
Applicable used for | Tinplate Can for Food and Beverage |
Material | Stainless steel 304 |
ABATA-ACL-H(270-3000) – Technical Description
The ABATA-ACL-H(270-3000) is a horizontal cylindrical sterilizer built for high-performance thermal processing of canned food and beverages. With an internal capacity of 270 to 3000 liters, it’s engineered to meet medium- to high-volume production needs with reliable sterilization cycles.
High-Temperature Processing Capability
The unit operates at temperatures of up to 135°C, making it suitable for sterilizing low-acid foods that require higher thermal intensity to ensure food safety and compliance with industry standards.
Stable and Safe Pressure Handling
Designed to withstand a pressure of 3.5 Bar, the Retort maintains structural stability and operator safety during high-temperature cycles, even during extended operation.
Automated Sterilization System
Equipped with an automatic sterilization system and an integrated internal cooling system, the process is streamlined for consistency, minimal human intervention, and reduced cycle time.
Efficient Heating System
Powered by a steam heating boiler, the sterilizer uses steam heating as both its source and working medium, ensuring efficient and even heat distribution throughout the chamber.
Built for Food-Grade Applications
The unit is specifically designed for canning food and beverage applications, with internal materials made from 304-grade stainless steel, providing excellent resistance to corrosion, high temperatures, and chemical agents.
